Add-on board to build an ethernet weather station

Parts with printed circuit board for the article: "An ethernet weather station"

This is an add-on board to our avr ethernet boards/webserver. It can be connected to both the SMD and the non SMD versions.

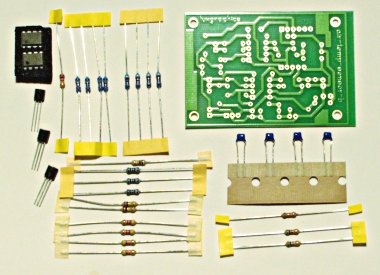

This kit includes:

Documentation with circuit diagram and drawing of the PCB the components
Printed circuit board: epoxy board, single sided, 5.1cm x 7.3cm
Capacitors: 4 x 100nF
2 x LM335 temperature sensor
1 x Low drop precision regulator LP2950-5
Std. resistors: 2x4K7, 1x2k7, 2x5K6, 2x47K, 1x15K, 1x18K, 2x100K
Precision resistors: 4x91K, 4x68K, 3x1K
2 x TS272 amplifier

Note: To build the complete ethernet weather station you will also need one of our avr ethernet solutions one 20x2 HD44780 comp. LCD display and one MPX4115A or MPX4115AP pressure sensor. If you don't want to messure air pressure then you don't need the MPX4115A. The system is modular and air pressure sensor as well as LCD display are optional.

printed circuit board with holes, solder stop, silk screen, gold coated

price: 11.05EUR, [convert_currency]

Sorry, this item is out of stock. We will not re-stock it. We will instead replace it by a new design.
